Item specifics
  • Light Source: LED Bulbs
  • Item Type: Bar Lights
  • Power Source: DC
  • Warranty: 2 years
  • Features: easy to install
  • Certification: CE,FCC,RoHS,CCC
  • Body Material: Aluminum
  • Model Number: led bar
  • Is Dimmable: Yes
  • Voltage: 12V
  • Width: 2.30
  • Length: 50
  • Usage: Industrial
  • Use: Indoor Lighting
  • Wattage: 6
  • Base Type: dc
  • Store: Suwell
  • item name: led bar light
  • Usage: led kitchen light under cabinet
  • key word: led strip aluminium profile
  • name: led rigid strip
  • length: led 50cm
  • key word1: led hard rigid
  • led type: smd 2835
  • led bar: led strip profile
  • under cabinet led: kitchen light
Product Description



Product details

Led Kitchen Light Under Cabinet Features:

Voltage: 12V DC

Watt: 6w

LED Q\'ty: 39 LED

LED Type: SMD 2835

Lumens: 880 LM

Control method: Touch switch + RF remote control

Control distance: approx 15m

Dimmable angle: 0-100%

Color Temperature: 5800-6400K

IP Grade: IP54

Net weight: 150g

Gross weight: 260g

Can\'t direct connected in series, you need contact me before order if want control it in series.



Package include:

1x LED Bar Light

1x DC cable

1x RF remoter ( no battery)

Product picture

SMart Lenner light1

IMG_0544 - IMG_0545




related Product

user manual

I. Features
1.SMD2835 LED Chip of high lumen and low attenuation.
2.Energy-saving and high brightness with the lifespan of 30,000 hours.
3.11 keys wireless remote controller and four shift brightness control.
4.DC12 / 24V power supply.
5.Both aluminum PCB and FPC available.
6.Soft light, good color rendering, quick start, environmental friendly.
7.Easy to install with several installation ways.
9.Smart LED Linear light can be with or without handheld controller,
its length is tailor made, each set are connected with 4.0 x 1.7 DC cable.
II. Product Profile
Smart LED Linear Light take aluminum profile as heat sink to help cool and reduce attenuation, use milky diffusion cover to make the light softer.
Its sharp edge and beautiful appearance bring us unique visual experience. The brightness is controlled by handheld controller and 11 keys
remote controller. The light can be with or without handheld controller.
All parts of the product are independent designed and produced by our company
III.Installation Method (A - Adhesive 3M tape, B - Clips, C - Suspension)
A - Adhesive 3M tape installation
1.Stick the 3M foam tape to the bottom of the aluminum profile.




2.Fix the LED Linear light with foam tape on the wall.


3.Connect with the DC input, the light will be OK.


B - Clips installation

1.Fix the clips on the wall.



2.Push the linear light to the clips.


3.Connect with the DC input, the light will be OK.

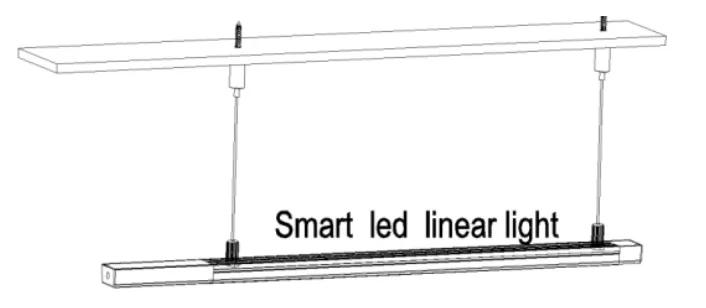

C - Suspension installation
1.Fix the suspension string on the ceiling.
2.Lock the aluminum profile.
3.Connect with the DC input, the light will be OK.

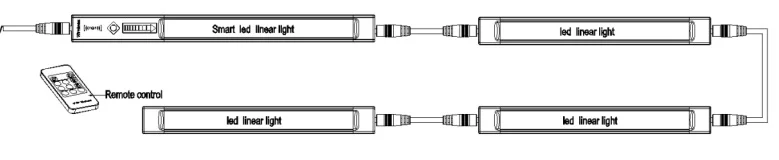

IV. Connection:
Note: Two LED Linear strips with handheld controller can\'t be connected together!
One series of linear lights can only have one handheld controller, each linear light are connected with 4.0x1.7 DC male connector wire.
With input voltage of 12V and 24V, the whole series wattage cannot be over 100W (if over 100W, the dimmer component is prone to be damaged).
V. Attentions
1.It works on DC12-24V, other input voltage is not allowed.
2.Connect linear lights in series within the wattage allowed.
3.It works at 250 HZ, cannot be applied to other frequency.
4.It must work in proper voltage, void over load.
VI. Applications
1.Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.
2.Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.
3.Advertisement project, such as outdoor illuminated signs, billboard decoration etc.
4.Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.
5.Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.
6.Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.
7.City beautification, landscape design, holiday decoration and so on.
